Installing a chuck on a drill press is an essential skill for anyone looking to get the most out of their drill press. Whether you are a seasoned entrepreneur in the manufacturing industry or a business leader exploring new tools for your workshop, understanding how to install chuck on drill press can significantly enhance your production capabilities.
In this article, I will walk you through the process of installing a chuck on a drill press. I aim to provide clear and concise instructions so anyone, regardless of their experience level, can confidently carry out the installation process.
Overview of the Drill Press and Chuck

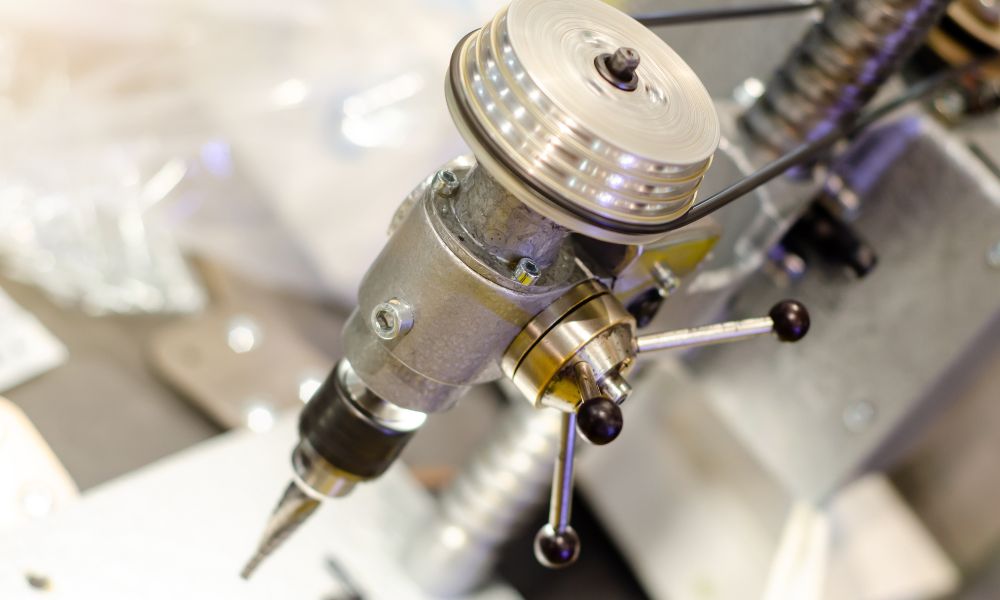

The drill press is a versatile tool used for drilling precise holes in various materials, ranging from wood to metal. The chuck, on the other hand, is the component that holds the drill bit in place, allowing the machine to perform its function. Having a properly installed chuck is crucial for the stability and precision of your drill press.
Importance of Proper Installation
A properly installed chuck ensures optimal performance of the drill press. It improves accuracy, reduces wear on the drill bits, and minimizes the risk of the chuck detaching during operation. Proper installation also extends the lifespan of your machine and enhances safety measures in your workshop.
Tools and Materials Required
Essential Tools
- Drill press
- New or replacement drill chuck
- Drift key or chuck removal tool
- Cotton cloth or rag
- Lubricant or degreaser
Step-by-Step Installation Guide
Removing the Old Chuck
- Turn off and unplug the drill press to ensure safety.
- Use a <>drift key or chuck removal tool to loosen the old chuck from its position securely.
- Support the chuck with one hand to prevent it from falling once it’s loosened.
- Once removed, clean the spindle thoroughly with a cotton cloth or rag to remove any debris.
Installing the New Chuck
- Apply a small amount of lubricant or degreaser to the spindle to ensure smooth operation.
- Align the new chuck with the spindle and hold it firmly in place.
- Turn the drill press on briefly to let the chuck self-seat on the spindle securely.
- Verify that the chuck is tightly fitted by giving it a gentle pull. If it doesnt come off easily, the installation is successful.
Testing the New Installation

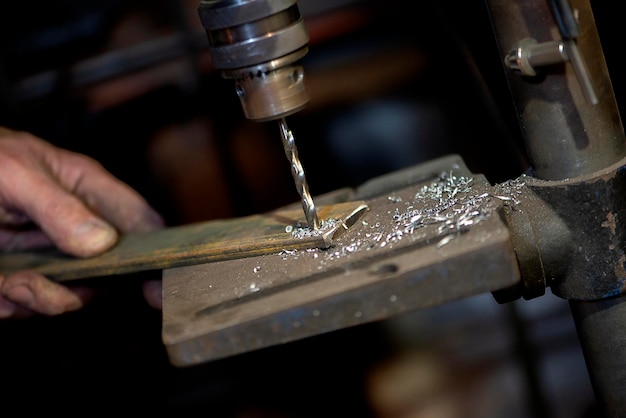

After installation, it’s crucial to test the new chuck to ensure everything functions correctly. Insert a drill bit into the chuck and perform a test drill on a piece of scrap material. Observe for any wobbling or irregularities in the drilling pattern that could indicate an improper installation.
Maintenance Tips for Drill Press
- Regularly clean the drill press and chuck to prevent dust buildup, which can lead to wear and tear.
- Lubricate moving parts occasionally to maintain smooth operation.
- Check the tightness of screws and fixtures regularly to ensure safety during use.
Common Mistakes and How to Avoid Them
When learning how to install chuck on drill press, there are some common mistakes that users may encounter:
- Over-tightening the chuck: This can strain the spindle and the chuck. Tighten just enough to secure the chuck.
- Not cleaning the spindle: Debris can interfere with chuck seating, leading to inaccurate drilling.
- Forgetting to unplug the drill press: Always ensure the machine is turned off to prevent accidents during installation.
Safety Precautions
Safety is a paramount consideration when working with power tools. Always wear safety glasses and gloves to protect yourself during installation and while using the drill press. Ensure the workspace is clear of clutter to prevent tripping hazards.
Troubleshooting Chuck Problems
In case of any issues following installation, such as the chuck coming loose or the drill bit wobbling, consider the following troubleshooting steps:
- Reinstall the chuck to ensure proper seating on the spindle.
- Check if the spindle or chuck is worn out or damaged, as this may require professional servicing.
- Verify that the correct size chuck is being used for your drill press.
The Importance of Choosing the Right Chuck
Different chucks cater to various drill press models and applications. Selecting the correct type and size for your specific needs ensures optimal performance and longevity.
Understanding Different Types of Chucks
Before you install a chuck, it’s essential to understand the different types available:
- Keyed Chucks: Require a key to tighten and loosen the drill bit.
- Keyless Chucks: Allow for quick changes without a key, but may not be as secure.
- Morse Taper Chucks: Designed for heavy-duty applications on larger machines.
Expert Tips for Installation
- Keep a set of spanners handy to assist in installation or removal processes.
- Consider consulting the safety guide provided by your drill press’s manufacturer for specific instructions.
- Engage with online forums or communities for additional advice or troubleshooting tips.
Training and Learning Resources
For those new to using drill presses, enrolling in a machinist training program can provide valuable hands-on experience and technical knowledge to enhance skills.
Conclusion
Understanding how to install chuck on drill press is an invaluable skill for maximizing the utility and performance of your drill press. By carefully following this guide, maintaining your equipment regularly, and adopting safety measures, you can ensure efficient and safe operation of your workshop equipment.
FAQ
What is the first step in installing a chuck on a drill press?
Always ensure the drill press is turned off and unplugged to prioritize safety during the installation process.
How can I tell if my chuck installation was successful?
Perform a test drill with a scrap piece of material to check for any wobbling or irregularities in the drilling pattern.
Can I install a new chuck by myself?
Yes, with the right tools and by following the step-by-step guide above, anyone can successfully install a new chuck onto their drill press.
